Fixed Cone Roof Tank Design

A traditional and typical fixed roof storage tank consists of a cylindrical steel shell with a dome or cone shaped roof that is attached to the tank shell. Supported cone roof is the most widespread type of fixed roof in the usa and arabic world. Fixed roof this is a low pressure tank with a roof welded to the shell regardless of roof design or support methods.

evelyn 3 light crystal strand wall sconce in chrome finish flash door vs french door fargo roofing and siding reviews fitzgerald roofing tulsa fallout 4 wall mounted spotlight glitch exterior outdoor concrete floor paint colors ezylite solar roof vent installation ff15 how to open locked doors

Types Of Storage Tanks The Piping Engineering World

How Many Storage Tank Types Do You Know

Https 4cmarketplace Nyc3 Digitaloceanspaces Com 4cconference 2018 Trainingmaterial Tanks 20essentials 20presentation Pdf

Fixed Roof Tanks An Overview Sciencedirect Topics

Types Of Storage Tanks Fixed Roof

Design Of Oil Storage Tanks

Plates have to be welded only to top angle.

Fixed cone roof tank design.

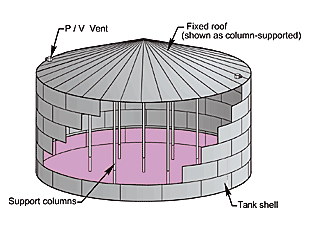

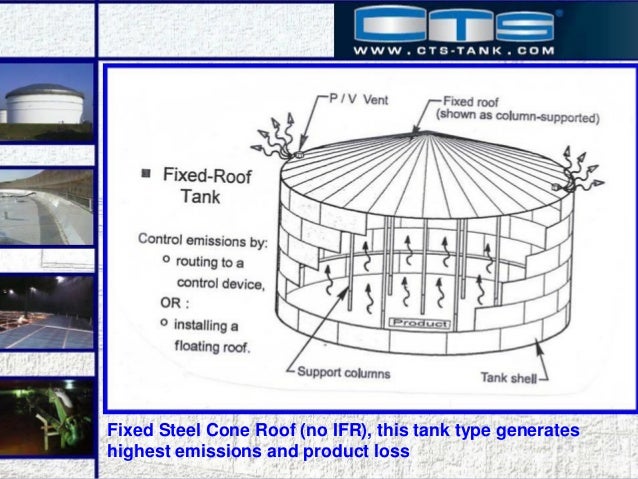

Fixed roof tank we currently used tank designs the fixed roof tank is the least expensive to construct and is generally considered the minimum acceptable equipment for storing liquids. Tanks that have been designed in accordance with api standards have a weak seam at the joint where the roof and. Cone roof tank open top floating roof tank internal floating roof tank covered floating roof cone roof storage tank has vertical sides and is equipped with a fixed cone shaped roof that is welded to the sides of the tank. A pressure vacuum valve or breather valve is installed which allows the tank to operate at a slight internal pressure or vacuum.

A typical fixed roof tank consists of a cylindrical steel shell with a cone or dome shaped roof that is permanently affixed to the tank shell. It can be used for every kind of tank volumes and dimensions. Double wall storage tank is a tank with an inner wall to contain a liquid as used in lng storage tanks it has an annulus space filled with insulation and an outer wall. Of currently used tank designs the fixed roof tank is the least expensive to construct and is generally considered the minimum acceptable equipment for storing liquids.

Fixed roof storage tanks. A typical fixed roof tank consists of a cylindrical steel shell with a cone or dome shaped roof that is permanently affixed to the tank shell. According to api650 roof plates could not be jointed to roof supporting structures.
